YL-XG03 自動搓式旋蓋機
2023-12-09 16:21:03 來源：本站
旋蓋機采用階梯式提 升理蓋，噪聲小輸蓋穩，若蓋子的方向錯誤自動回落到儲蓋斗，保證上蓋的準確性。
Overview
capping Screwing machine adopts ladder-type lifing cap unscrambling, with low noise and stable cap conveying.Caps can automatically full back into cap hopper if they are in wrong direction, ensure the accuracy of capping.

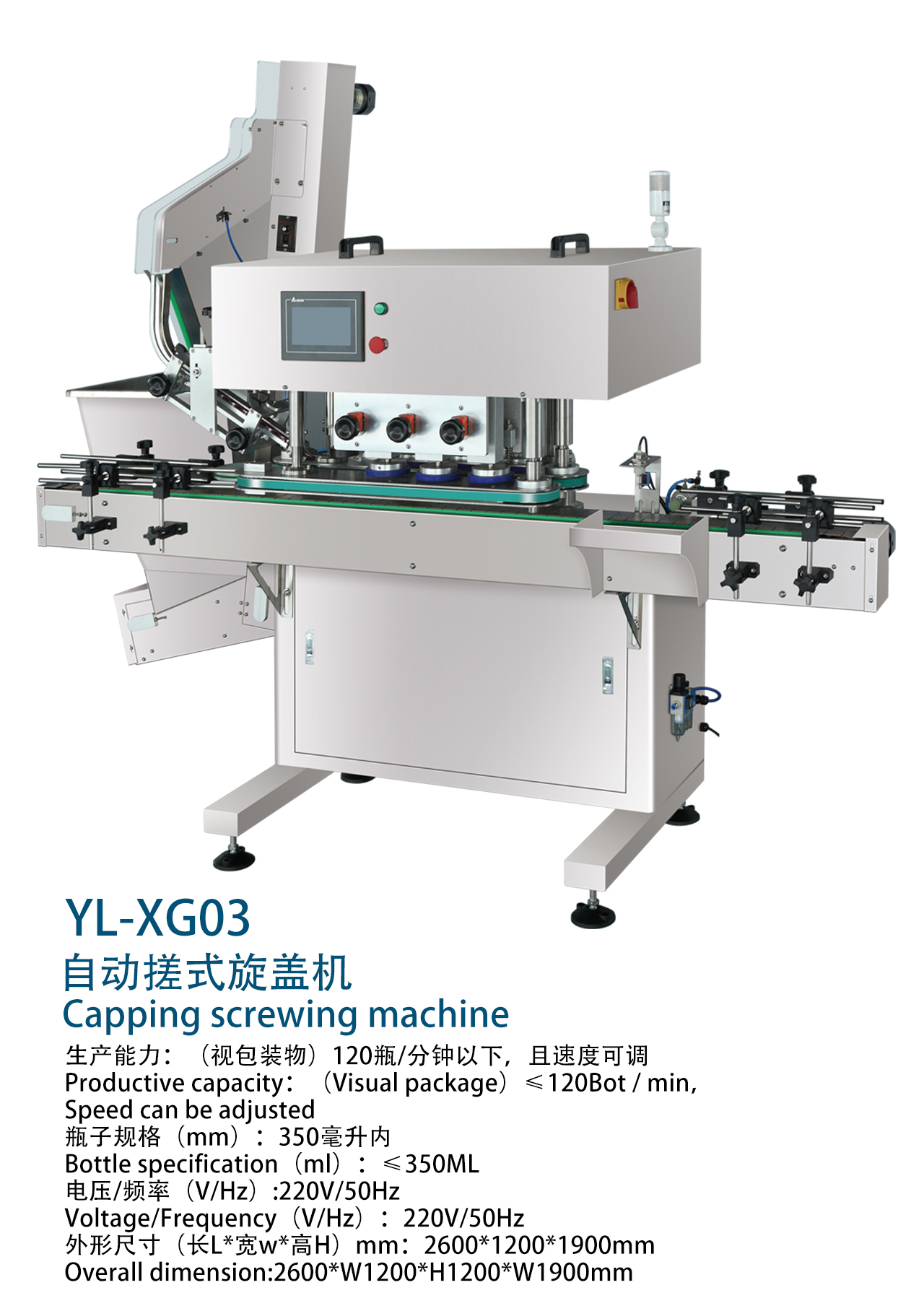

YL-XG03自動搓式旋蓋機
Capping screwing machine
生產能力：（視包裝物）120瓶/分鐘以下，且速度可調
Productive capacity：（Visual package）≤120Bot / min，Speed can be adjusted
瓶子規格：350毫升內
Bottle specification（ml）：≤350ML
電壓/頻率（V/Hz）:220V/50Hz
Voltage/Frequency（V/Hz）：220V/50Hz
外形尺寸（長L*寬w*高H）mm：2600*1200*1900mm
Overall dimension:2600*W1200*H1200*W1900mm
主要特點
三對摩擦輪進行搓式旋蓋，旋 蓋松緊可調節，不損傷蓋子表面；
設備對各種瓶子適用性強，換 品種簡單方便，只需對設備小部件 進行調節即可；
人機界面觸摸屏和PLC控制系統的 操作，使設備運行穩定，操作簡便；
具有無蓋無瓶不工作，歪蓋、 反蓋、無鋁箔檢測剔除，故障自檢 等多項檢測功能。
Main features
Equipped with three pairs of friction wheels ,self-adjust tightness, helpful the caps surface
Wide applicability, it is simple and convenient if change bottles and caps, just adjust some components
Equipped with human-computer interface and PLC control system, Ensure more stable operation and easier handling Self-diagnose errors and stop working to make alarm at errors and missing bottles caps. The bottle with twisted cap ,anti-cap and without aluminum foil will be removed.
主要技術參數 Main technical parameters
設備名稱 Name | 生產力 pcs/min | 電源功率Power supply | 空壓 ( M P a ESUE | 用氣量(myh Consumption air | 外形尺寸 Net Dimension | 重量Weigh |
旋蓋機 | 50-120 | 220V/50HZ 1.8KW | 0.6 | 0.3 | 2550*1050*1900mm | 650kg |
