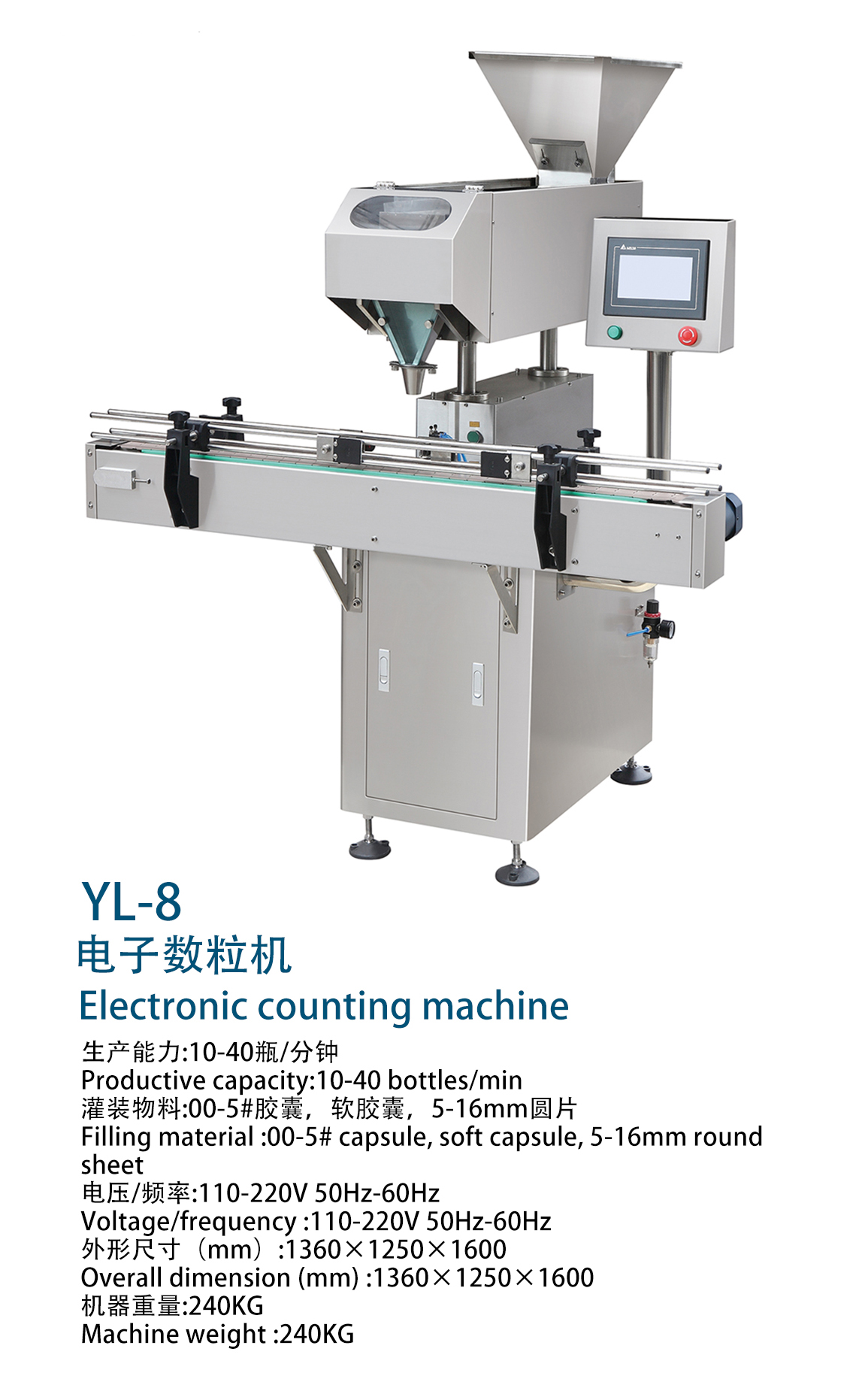

YL-8 電子數粒機
2023-12-09 15:37:33 來源：本站
Electronic counting machine
生產能力:10-40瓶/分鐘
Productive capacity:10-40 bottles/min
灌裝物料:00-5#膠囊，軟膠囊，5-16mm圓片
Filling material :00-5# capsule, soft capsule, 5-16mm round sheet
電壓/頻率:110-220V 50Hz-60Hz
Voltage/frequency :110-220V 50Hz-60Hz
外形尺寸:1360×1250×1600
Overall dimension (mm) :1360×1250×1600
機器重量:240KG
Machine weight :240KG
型號 Model | YL-8 |
生產能力 Productive capacity | 10-30瓶/每分鐘 10-30pcs/min |
灌裝物料 Filling material range | 5#～00#膠囊、軟膠囊，ф5.5～12素片、異形片、糖衣片，ф5～12丸劑 5#-000#capsule、softgel、?5.5～12mmRound tablet、 Abnormal shape、Icing tablets、?5～12mmpill |
裝量范圍 Loading range | 2～9999粒/片可調 2-9999Pellet/tablet（adjustable） |
電壓、功率 Voltage/power | 220V/50HZ 0.6KW |
適用瓶口 Fitting neck | 10-500ml圓瓶、方瓶 10-500ml Round bottle, square bottle |
準確率 Accuracy rate | 99.5%以上 Greater than99.5% |
重量weight | 240Kg |
備注remark | 生產速度與藥品品種、大小、藥瓶規格、瓶裝量有關 The production speed is related to the variety, size, bottle size and bottle quantity of the drug |
數粒范圍參考：
Applicable material reference
形狀shape | 尺寸size | 備注remark |
膠囊capsule | 5#-00# | |
軟膠囊 softgel | 尺寸參考膠囊 size is the same as the capsule | |
圓片劑 Round tablet | 5.5-18MM，厚度4MM以上 5.5-18mm，Thickness greater than 4 mm | |
橢圓長條片劑 Long strip tablets | 尺寸參考膠囊，厚度4MM以上 size is the same as the capsule，Thickness greater than 4 mm | |
丸劑pill | 5.5-18MM | |
異形片Abnormal shape | 邊緣光滑、圓潤，如三角形可以數The edges are smooth and rounded, such as triangles can be counted | 尺寸參考片劑 size is the same as the tablet |
小熊糖，軟糖，表面含粘不能數 bears, gummy candies, sticky on the surface | 根據尺寸需定制 Customized according to size | |
游泳圈型等中間鏤空不能數 The hollow in the middle of the swimming circle can not be counted |
