YL8-200R 數粒干燥包裝機
2023-12-09 15:40:59 來源：本站
電子數粒干燥塞入給袋機是我公司自主研發的新產品是 經過數粒機的準確計數后裝進給袋機準備好的袋 中，完全實現無人操作，真正實現自動化包裝。
Overview
Counting drying & bagging machine is the new product through my company independent research and development After accurate counting and filing to the ready bags, fully realize unmanned operation and automatic packaging

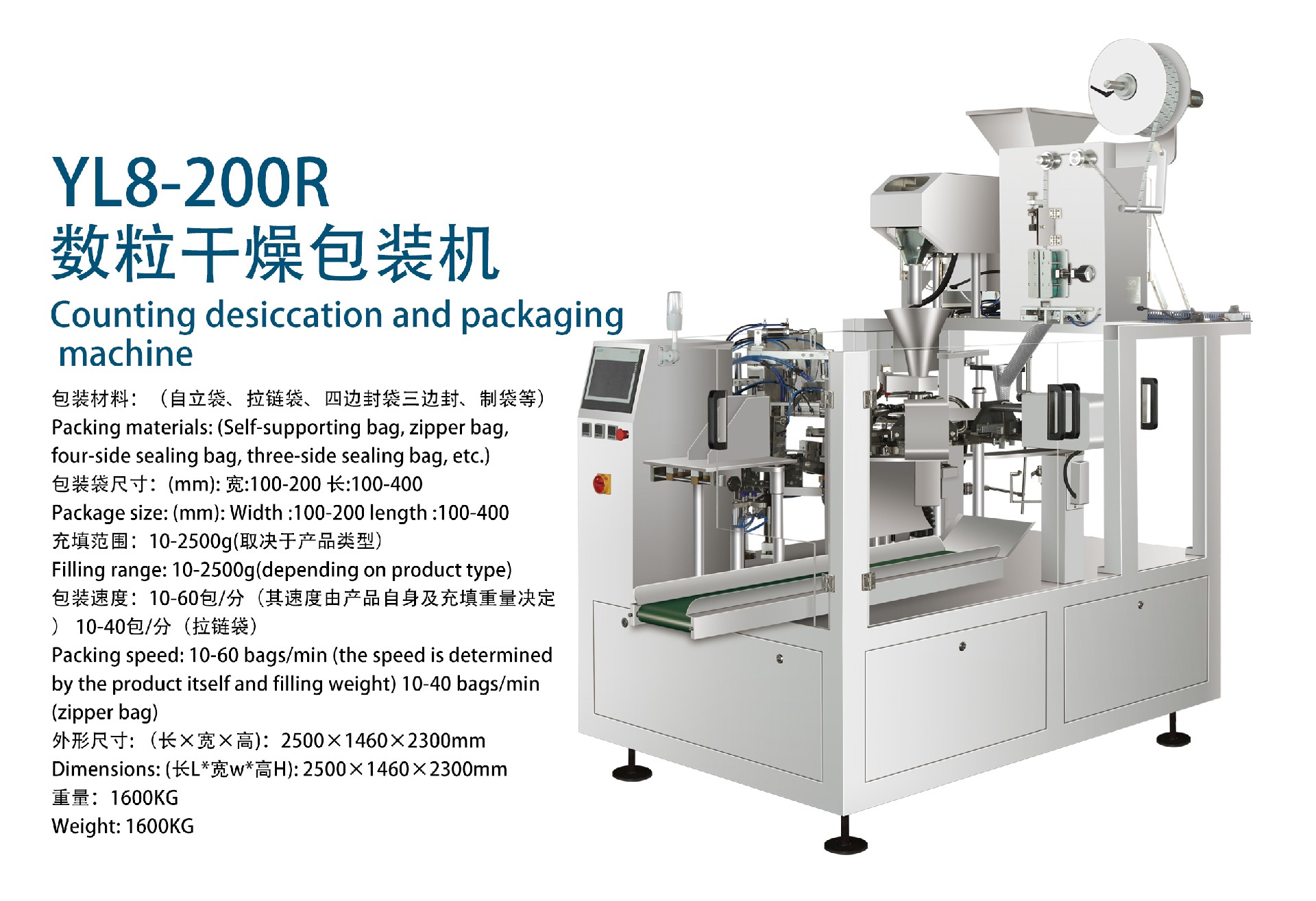

YL8-200R 數粒干燥包裝機
Counting desiccation and packaging machine
包裝材料：（自立袋、拉鏈袋、四邊封袋三邊封、制袋等）
Packing materials: (Self-supporting bag, zipper bag, four-side sealing bag, three-side sealing bag, etc.)
包裝袋尺寸：(mm): 寬:100-200 長:100-400
Package size: (mm): Width :100-200 length :100-400
充填范圍：10-2500g(取決于產品類型）
Filling range: 10-2500g(depending on product type)
包裝速度：10-60包/分（其速度由產品自身及充填重量決定） 10-40包/分（拉鏈袋）
Packing speed: 10-60 bags/min (the speed is determined by the product itself and filling weight) 10-40 bags/min (zipper bag)
外形尺寸: （長×寬×高)：2500×1460×2300mm
Dimensions: (長L*寬w*高H): 2500×1460×2300mm
重量：1600KG
Weight: 1600KG
壓縮空氣消耗量Compressed air consumption：≥0.6立方體/分Cube/ min（壓縮空氣由用戶自行提供）
主要特點：
該包裝機由PLC 控制，人機界面操作，可以
對整機進行監控，如果出現空袋及未上袋等異常
情況， PLC 均能對異常情況進行判斷；兼容性
強，可以對片劑(包括異型片)、膠囊、軟膠囊
(透明、不透明)、丸劑等固體制劑或固體顆粒
進行計數裝袋；過載保護，安全裝置。在機器工
作氣壓異常或者加熱管故障時自動提示；采用真
空過濾器，清潔衛生無污染。
Main features：
The packaging machine is controlled by
PLC and human-machine interface. It can
monitor the whole machine. If there are
abnormal situations such as empty bags and
no bags, PLC can judge the abnormal
situation;Wide applicability, Used for
tablets(including abnormal tablets),capsules,
gels(including abnormal gels, transparent gels
and opaque gels),pills and most solid
granules;Overload protection, safety device.
Automatic warning when the machine is
working with abnormal pressure or heating
tube;Vacuum filter is adopted to clean and
clean.
